Descripción

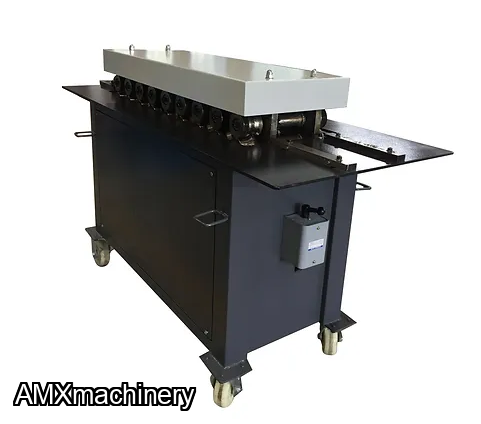

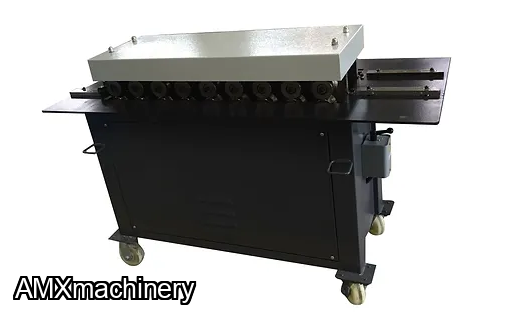

FORMADORA DE METAL PARTE: 2GM-GMC PL-18HEM
A reliable and versatile solution for professional fabricators. Designed for precision and durability, this machine is built to handle your hemming needs with ease, efficiency, and consistency.
- ISO 9001 certified
- 4HP Heavy Duty AC main motor, 220V, 3 phase
- Heavy welded all steel construction for maximum rigidity
- One side forms Flattened Hem and Open Hem
- One side forms Teardrop Hem and Rope Hem
- One year warranty for parts
- One set of 9 pairs rolls form Flattened Hem and Open Hem
- One set of 9 pairs rolls form Teardrop Hem and Rope Hem
Specifications | GMC PL-18HEM |
Capacity: Galvanized sheet Flattened Hem Open Hem Teardrop Hem Rope Hem Pittsburgh lock , 5/16” width Double seam Drive Cleat |
24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. |
Station numbers | 9 stations with 9 pairs of rolls on each side |
Feeding speed | 21 FPM |
Main motor Amperage draw | 4 HP, 220V, 3PHASE 15Amp |
weight, approx | 685 LBS |
Machine dimensions, LxWxH Machine shipping dimensions, LWH | 60”x25”x40” 62” x 27” x43” |
