Descripción

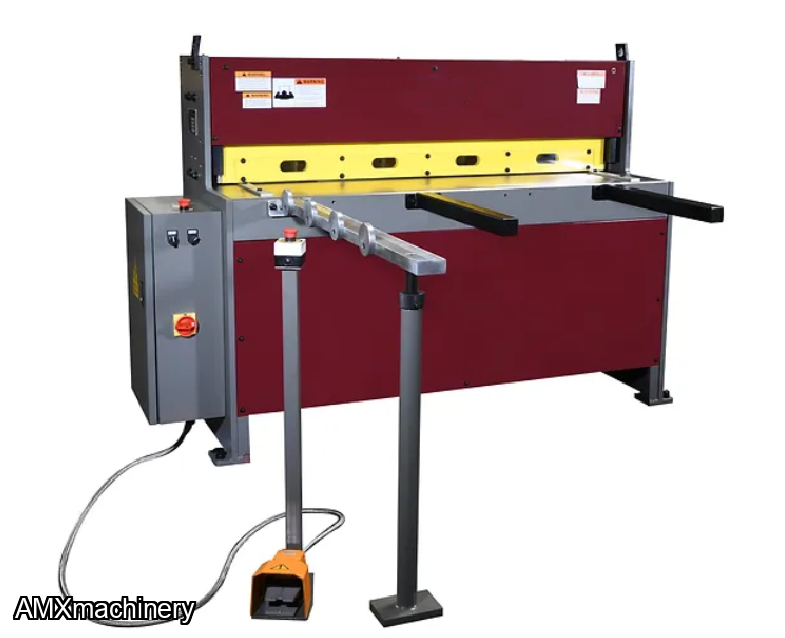

CORTADORA 4 PIES PARTE: 2GM-EPS-0412M-1PH
Shop our 4 foot mechanical shears that are capable of cutting up to 12 gauge mild steel and 16 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
- ISO 9001 certified
- American design and Taiwan quality machine
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 30 strokes per minute
- 60” long squaring arm with inch / mm scale
- spring hold-downs
- high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts

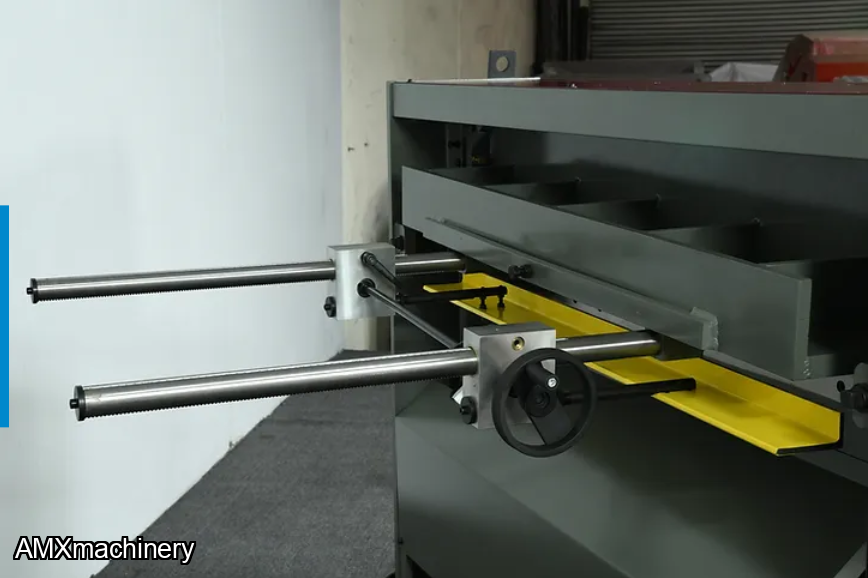

- 26” manual back gauge with one side handwheel

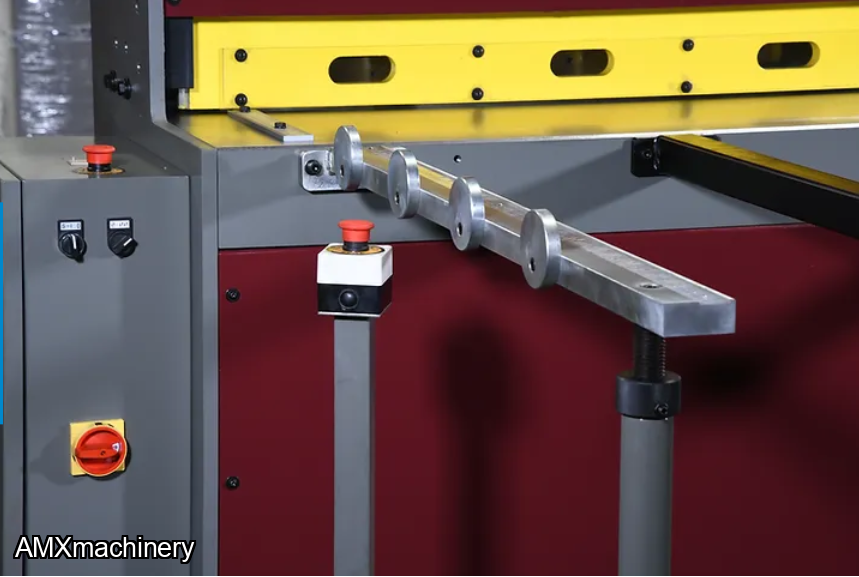

- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
Cutting Capacity Mild Steel - HRS (tensile 60,000 PSI) Stainless Steel (tensile 85,000 PSI) Soft Aluminum (tensile 28,000 PSI) Min thickness |
4' x 12 Ga. 4' x 16 Ga. 4' x 8 Ga. 26 Ga. |
| Blade Length | 52" |
| Strokes per minute | 35 |
| Worktable height | 32" |
| Front support arm | 36" |
Go-to Back gauge | 26" manual back gauge |
Blade Rake Angle | 2 Degree |
