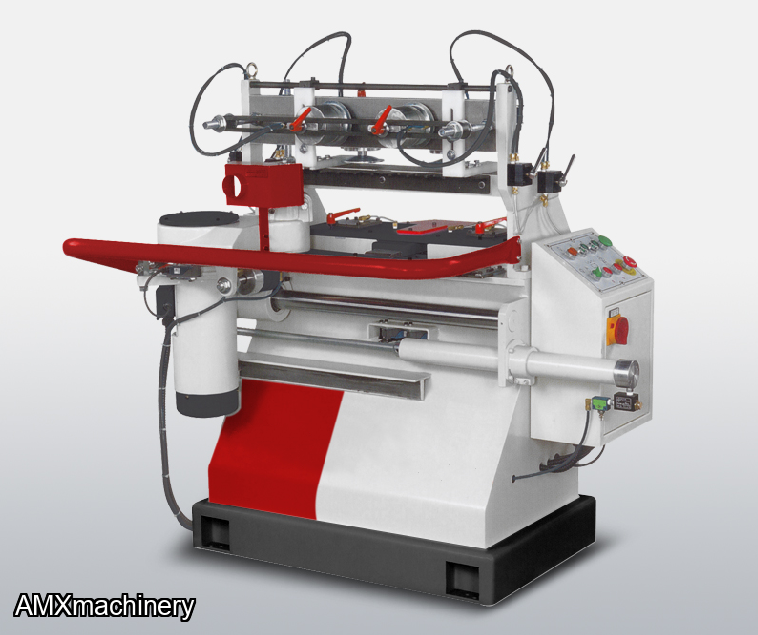

ENLAZADORA DE CAJONES AUTOMATICA 2CK-JDT75
Workpiece Dimensions
Display your quality and are built to last, producing beautifully aesthetic dovetails for drawer box production from a wide range of wood types, including plywood and solid wood. This fully automatic machine produces both the pin and tail of the dovetail simultaneously. All four sides of the drawer can be loaded into the machine for optimum production capacity.
- High-quality finish in both plywood and solid wood drawer box material
- Fast operation with up to 40 drawer boxes produced in an hour
- Solid cast iron machine structure for vibration-free dovetailing leading to a long machine life

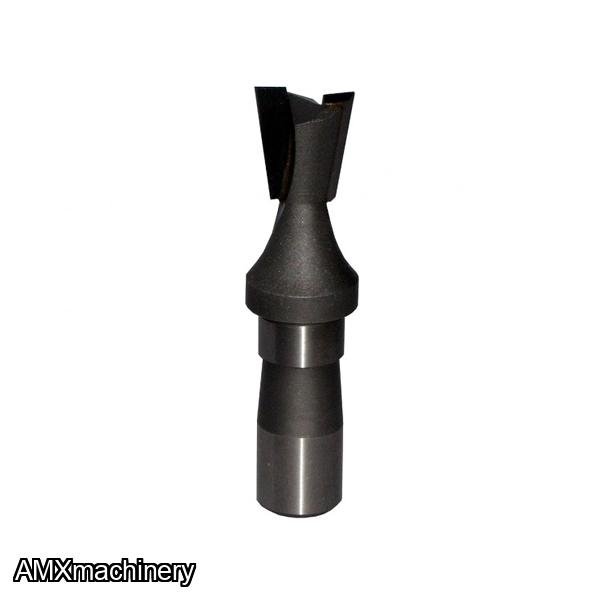

- Superior finish with two flute dovetail bit

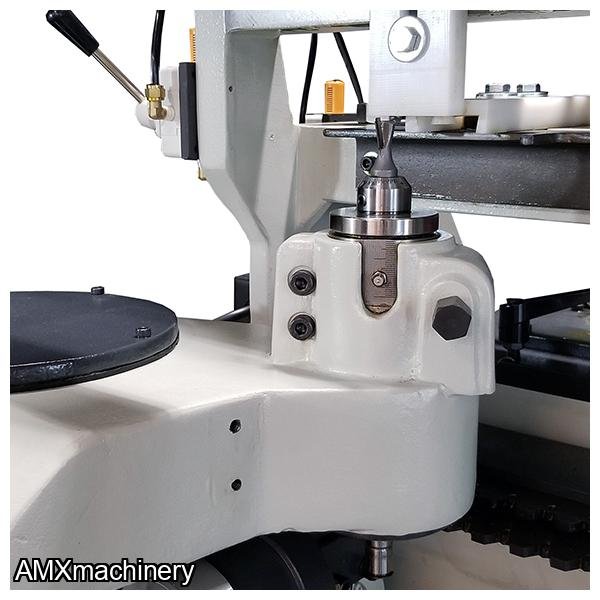

- 21500 RPM spindle for an extremely fine finish on dovetail joints

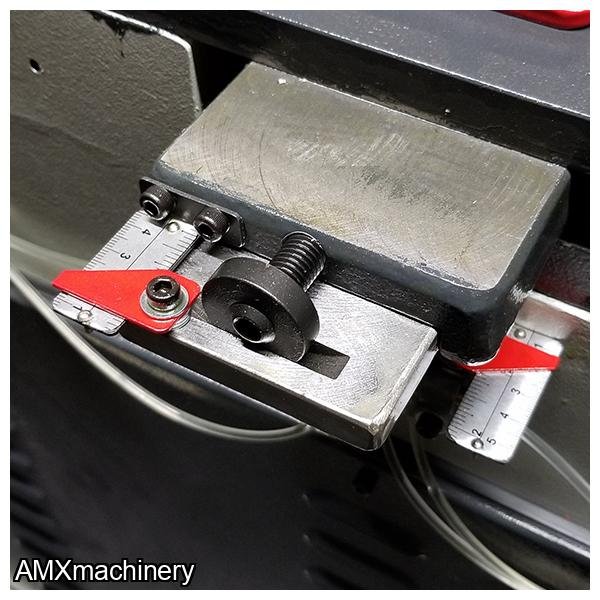

- Independent adjustment of both the tenon & the mortise depth for precise fitting of dovetail joints
- Cast iron base to ensure vibration free cutting

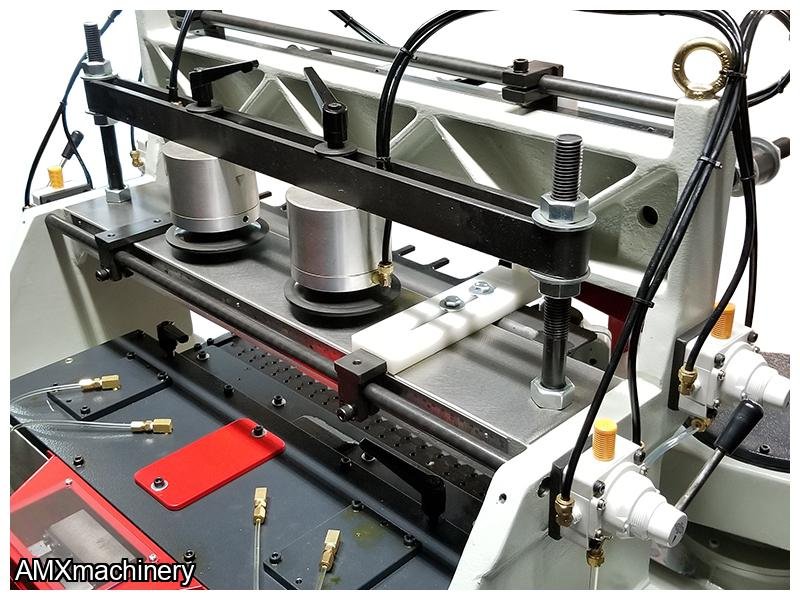

- Pneumatic clamping for fast component changeover
- (3) cycle speeds for best finish results

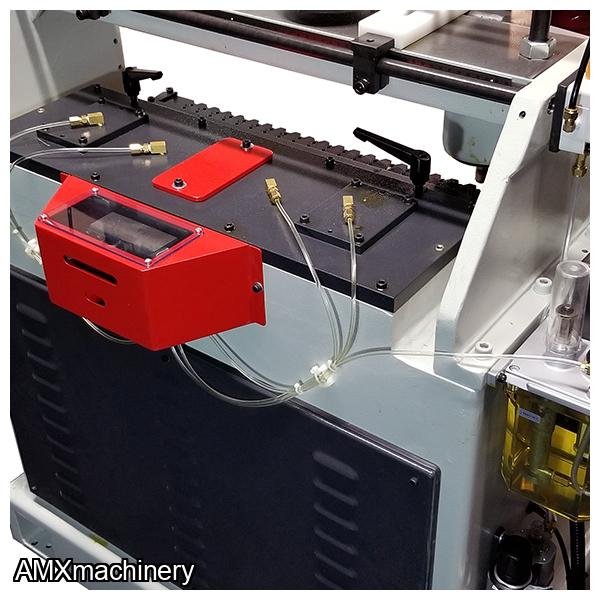

- Automatic lubrication system to spindle stroke
- Dust hood for milling cutter
- Safety rail in front of spindle motor

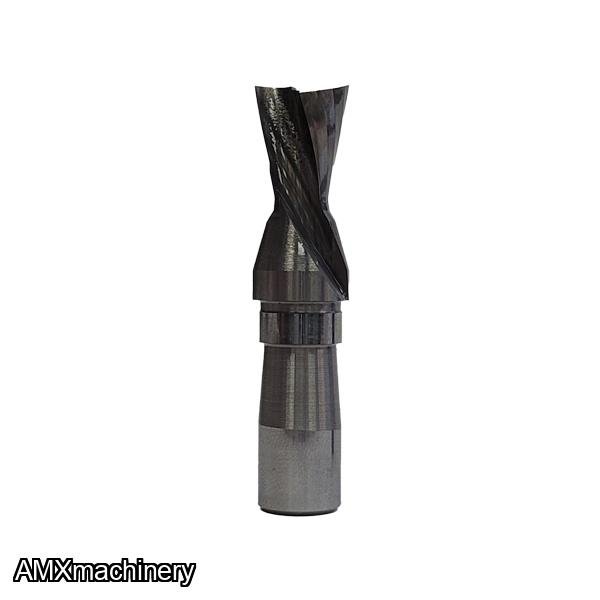

- Straight or spiral dovetail bits available
Fixed pitch | 25mm |
Spindle speed | 21,500 RPM |
Spindle diameter shank | 0.472” (12mm) |
Spindle motor | 2 HP |
Feed motor | 2 HP |
Electrics | 230/3/60 = 13.6 Full Load Amps |
Feed speeds (3) | 16, 22, 31 cycles/min |
Net weight approx | 990 lbs. |
Shipping weight | 1210 lbs. |
Shipping dimensions | 55.12” x 34.65” x 55.12” |
Workpiece Dimensions
Working length | min. 7.87” (200mm) to max. 59” (1500mm) |
Working width | min. 2.36” (60mm) to max. 16.93” (430mm) |
Vertical material thickness | 0.275” (7mm) to 2.36” (60mm) |
Horizontal material thickness | 0.394” (10mm) to 1.18” (30mm) |
