Identificador: 1670
Abierta
Descripción

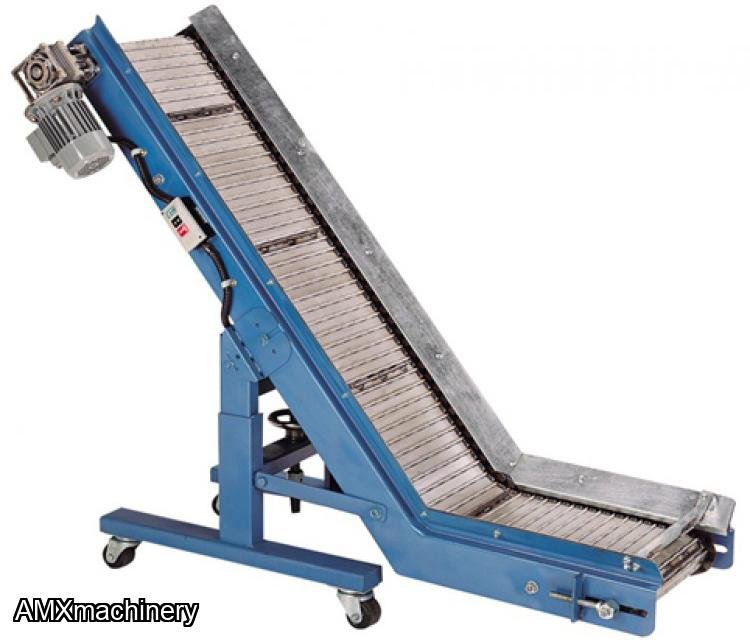

PARTE: 2CK-AW - TRANSPORTADOR DE MATERIAL - MOTORIZADO
|
Belt Width |
BW |
12″ |
15.75″ |
19.7″ |
23.6″ |
27.5″ |
31.4″ |
|
Machine Width |
FW |
13.4″ |
17.3″ |
21.25″ |
25.2″ |
29″ |
33″ |
|
Std. Material Width (max.) |
PW |
9″ |
13″ |
17″ |
21″ |
24.8″ |
28.7″ |
|
Overall Machine Length |
L1+L2 + L3 |
79″-236″ (2000-6000mm) |
|||||
|
Body Material |
Heavy Steel Plate |
||||||
|
Speed |
Standard – Fixed 36 FPM or 16 FPM |
||||||
|
Optional – 3-15 FPM or 10-36 FPM |
|||||||
|
Characteristics of Track Belt |
Material Under Panel (steel plate), 2mm thick |
||||||
|
Transportation Capacity (Electric Motor) |
1/8HP or 1/4HP |
||||||
|
Power Source Wire |
Length: 16.5′ (5M) |
||||||
|
Electrics |
230/1/60 oor 203/460 or 575/3/60 |
||||||
