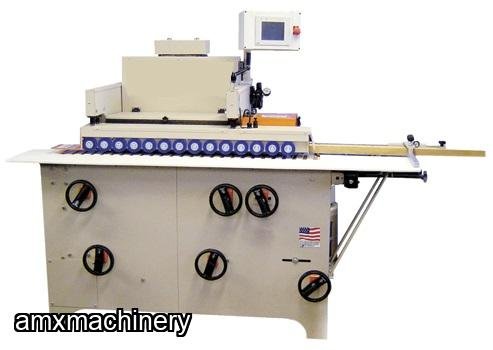

PARTE # 2AM-410 - TROMPO/PULIDOR CON ALIMENTADOR INTEGRADO PARA MOLDURAS RECTAS Y CURVAS
Shaper Motor: 7.5 HP Belt Driven
Shaper Spindle Speed: 4000-7000 rpm
Shaper Spindle: 1-¼" Dia.

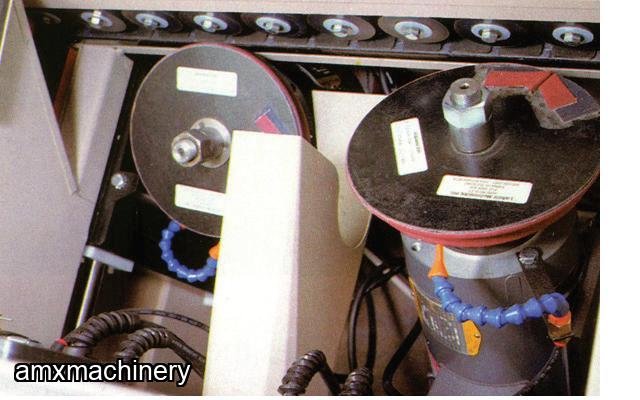

Sander Motors: 1.5 HP Direct Drive
Sander Spindle Speed: 400-1800 rpm
Sander Spindles: 1" Dia. by 4" Tall
Voltage: 208-240V 3ph, 30A
208-240V 1ph, 40A
440V 3ph, 15A

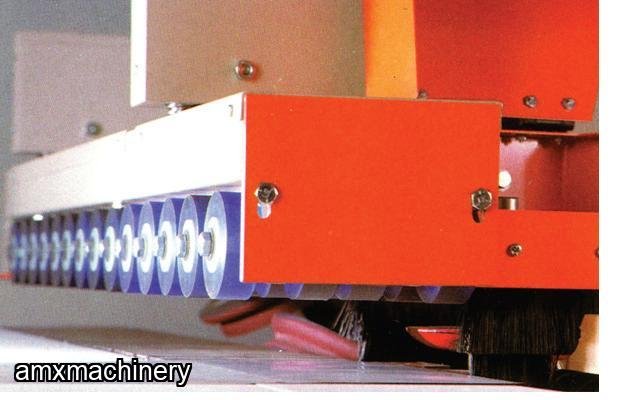

Conveyor: 6" Wide, 4 rows of tires
Vertical Adjustment: Yes, with digital counters
Horizontal Adjustment: Yes, with digital counters
Sanding Wheel Tilt: 60º Forward; 40º Back
Fence: 5 adjustable stops
Table Height: 36 inches
Size: 75" x 36" x 54"
Weight: 1325 lbs
Plantilla Centradora para curvas - opcional

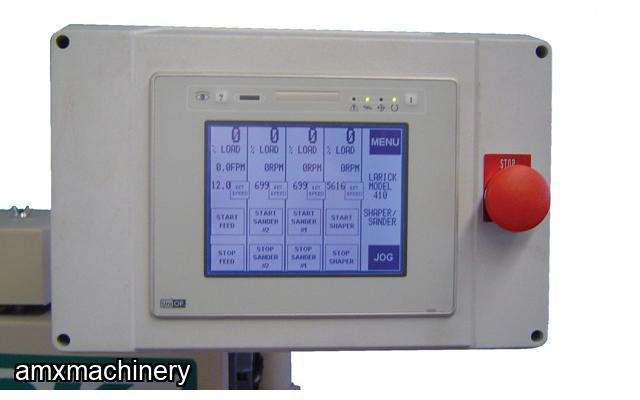

Designed and manufactured to give years of dependable service, the Larick 410 will shape and sand a wide variety of workpieces. Features include a 6" wide feed chain with four staggered rows of hold down tires; front adjusting handwheels with digital readouts for horizontal and vertical shaper and sander positions; AC inverter controlled variable speed for shaper, sanders, and feed featuring digital readouts for speed and load; floating heads are optional which allow shaping and sanding of arched panels. The user friendly design makes setup and profile changeovers quick and easy.
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
SIERRA CINTA 16"
PARTE # SIL-DC-BS0016 - SIERRA CINTA DE 16" - MOTOR 2 HPNUEVA CON GARANTIAMOTOR: 2 HP, 220V, 60 Hz, 2 FASESCAPACIDAD DE CORTE: 14.4" X 8"LONGITUD DE LA SIERRA: 2950 MMANCHO DE LA SIERRA CINTA: DESDE 1/4" HASTA 1-1/2"VELOCIDAD DE LA CINTA: 10 MTS/SEGTAMANO DE LA MESA: 20" X 15-1/2"ALTURA DE LA MESA: 38"INCLINACION DE LA MESA: 10 - 45 GRADOSPESO: 126 KGSEMPAQUE: 1 CAJA
AMXmachinery
TORNO PARTES IRREGULARES AUTOMATICO
PARTE: 12138 – TORNO PARTES IRREGULARES AUTOMATICO
USADO – BUENAS CONDICIONES
4 pieces worked
contemporaneously
max. diam. of work mm.
280
max. working length mm.
1250
cutters rpm 4.950
cutter motor power Hp 10
( 7,5 Kw )
rotation speed of pieces
rpm ( min.0 / max.100 )
feed speed mm./1 ( min.0
/ max. 500 )
diam. of cutters mm. 210
pneumatic system
pressure 6/10 bar
totally enclosed
total installed power Kw
10
connection voltage Volt.
380 / Hz ...
AMXmachinery
PARTE: 12422 - PRENSA DE ENSAMBLE FINGER JOINT
PARTE:
12422 - PRENSA DE ENSAMBLE FINGER JOINT
USADA
- BUENAS CONDICIONESMarca
WeiliModelo
MHZ 1550ªPrensa
para ensamble de piezas largas Finger JointLas
piezas se introducen ya encoladas
Largo
útil de ensamble desde 50 cm hasta 5 mt
AMXmachinery
CALDERA - HURST HYBRID 200, 300, 600 HP
PARTE: 12319 -
CALDERA - HURST HIBRIDAS 200, 300, 600 HP
USADAS - BUENAS
CONDICIONES
Hurst Hibrida 600
HP 150 PSIHurst Hibrida 200
HP 150 PSI
Hurst Hibrida 300
HP 150 PSI
Each system should
include (email for specifics):
Hurst Hybrid
Vessel
Hurst Boild
Furnace with cast grates
Hurst underfeed
stoker system
Hurt Metering
conveyor system
Overfire air
combustion fan
Underfire air
combustion fan
Hurst combustion
air preheater
Access platform...
