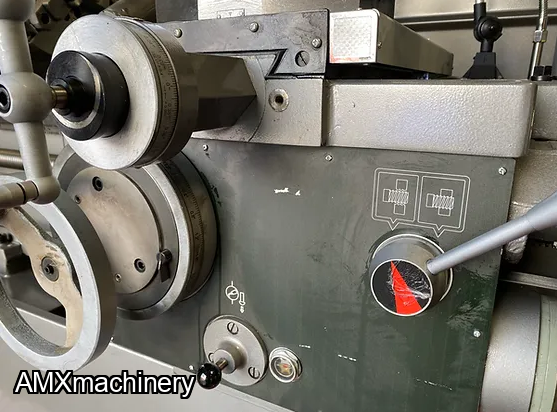

TORNO 20'' x 80'' PARTE: 2GM-GML-2080
Bed Gap Metal Lathe with a big spindle bore 3-1/8". Precise, robust, and fully equipped with a 29 swing in gap. Whether you're in a machine shop or looking to replace your old workhorse in your home garage, this metal lathe is for you. It comes standard with a fully assembled metal stand with two cabinets on each side to keep your tooling and accessories stored.
- ISO 9001 certified
- 1-Year Parts Only Warranty
- Large spindle bore 3-1/8”
- Spindle D1-8
- Guideway width 12”
- Main motor 10HP
- 16 spindle speeds from 25-1,800 rpm, 12 speeds
- 4-way rapid traverse on the carriage longitudinal and cross
- 60 kinds of inch threads, and 41 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
| Max. swing over bed | 20" |
| Max. length of workpiece | 80" |
| Max. swing over cross slide | 12 1/2" |
| Max. Swing in gap | 29-1/8" |
| Width of Bed | 12" |
| Effective length in gap to spindle | 6" |
| Effective length in gap to chuck jaws | 3 1/2" |
| Spindle bore | 3 1/8" | D1-8 |
| Taper of spindle center | M.T. #7 |
| Spindle speeds | 25-1,800 rpm / 12 steps |
| Longitudinal feeds | 0.0011-0.063 IPR, 42 kinds |
| Cross feeds | 0.0003-0.018 IPR, 42 kinds |
| Inch threads | 2-112 TPI, 60 kinds |
