Descripción

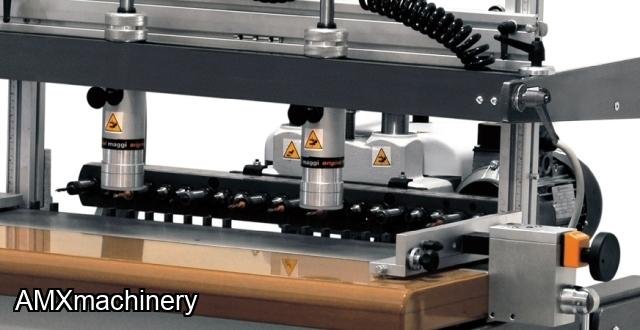

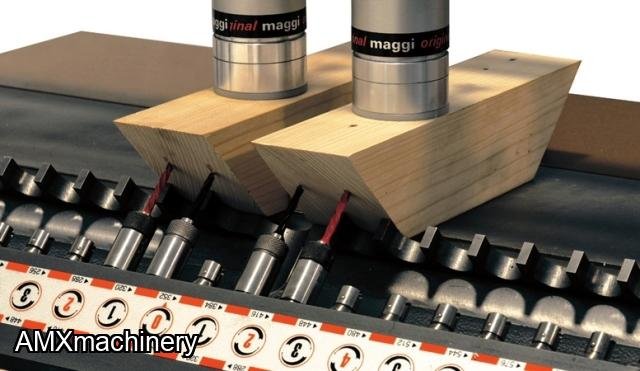

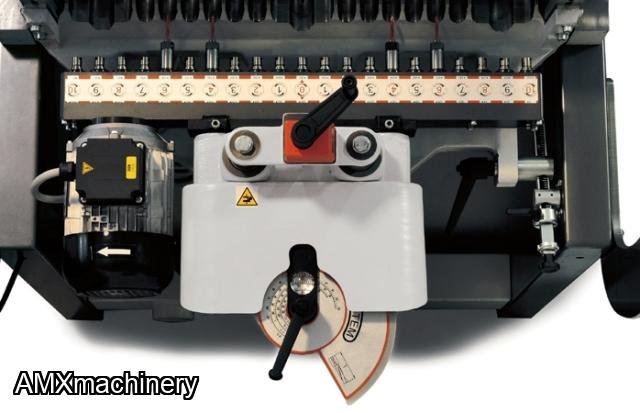

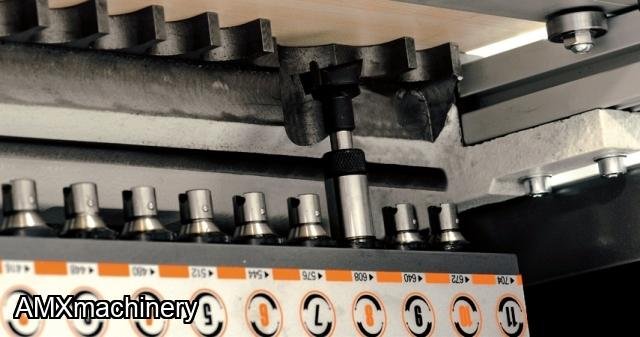

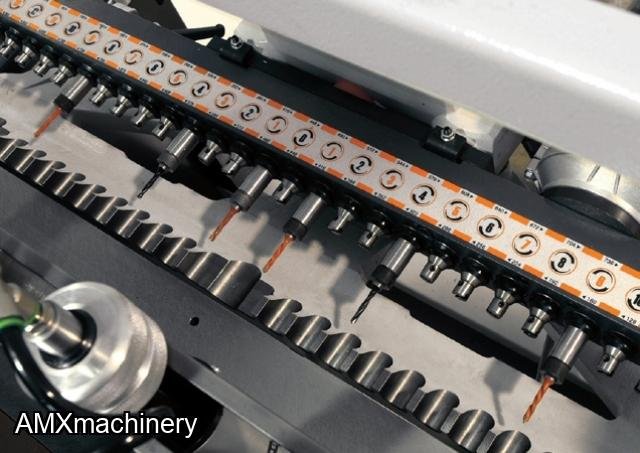

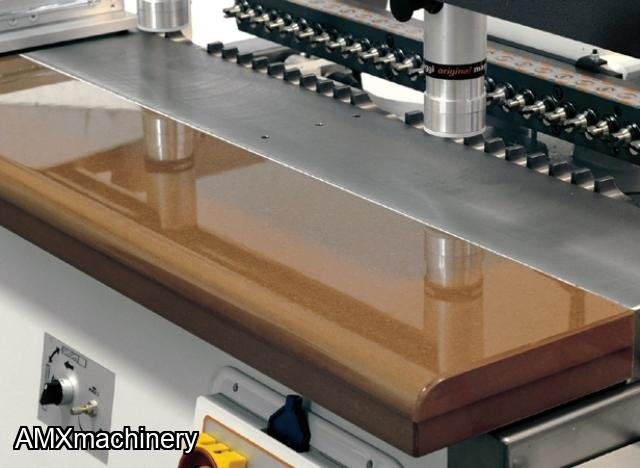

PARTE: 2JG-MAG-SYSTEM35 - TALADRO MULTIPLE - MAGGI SISTEMA 35
Provides a 35 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle
- Accurate positioning of the boring unit to the table with digital readout
- 0 to 3.25" adjustable drilling depth with patented spiral setting device
- (4) patented quick release material clamps with auto-setting to firmly hold material to table
- (2) Powerful 2 HP motors
- 52.4" x 16.2" cast iron table
- Side fences with mechanical digital readout for quick and accurate setting
- 120" line boring fence with (4) stops
- Foot actuated pneumatic clamps and drill cycle
- Includes: Magnetic Starter with overload protection and (35) quick change chucks
- Dust Outlet: 3"
- Voltage: 230V 3-Phase
- Net weight: 705 lbs
- Dimensions: 65.75" x 38.9" x 50" Tall
- Crated Dimensions: 59.8" x 37.4" x 40.5" Tall
- Crated Weight: 995 lbs.
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery1
EXTRACTOR TUBOAXIAL DIRECTO
PARTE: 1AM - EXTRACTOR TUBOAXIAL DIRECTOPara uso de procesos comerciales e industriales, torres de enfriamiento, extracción de humo, gases en estacionamientos, viveros, etc.Carcaza de acero al carbón, pintada con pintura electrostática y horneada. Aspa de aluminio anti-chispa. Accionado por acoplamiento directo a un motor eléctrico.Características:– Diámetro de aspa desde 16″ hasta 26″.– Motores en voltaje 127/220V. y 220/440V.– Volúmenes de aire: 4,200 hasta 18,725 PCM. Presi...
AMXmachinery1
2GM-PRB - DOBLADORA DE TUBO HIDRAULICA 3''
PARTE: 2GM-PRB - DOBLADORA DE TUBO HIDRAULICA 3''Fully equipped with a 3" die set to roll metal square tube into rings. Perfect solution for any fabrication shop looking to speed up the manual process. These metal roller benders are popular amongst the metal fence manufacturing, green house manufacturing, roll cage fab shops, and welding fab shops. ISO 9001 certifiedHydraulic top roller positioning with digital readoutMax capacity: 4” tube and 3-1/2” pipeHeavy Duty 5-1/2HP AC main motorHeav...
AMXmachinery1
FRENO HIDRAULICO DE PLANO RECTO
FRENO HIDRAULICO DE PLANO RECTO PARTE: 2GM-HSB-1014Taiwan MachinesISO 9001 certifiedHydraulic adjustment for openingHydraulic power clamping for workpiece26” manual back gauge with handwheel1” manual beam adjustment ( front and back )Min. reverse bend is ¾” (20mm)Heavy welded all steel construction for maximum rigidityGermany Rexroth Hydraulic logic system centrally located and quietA wide guidebody ensures strong, stable, smooth & accurate movementComes wit...
AMXmachinery1
MOLDURADORA - 5 CABEZALES - 7” ANCHO - LEADERMAC LMC 518S SMARTMAC
PARTE: 2CK- LMC-518S - MOLDURADORA
- 5 CABEZALES - 7” ANCHO - LEADERMAC LMC 518S SMARTMAC
SPECIFICATIONS
Thickness of material
.4”(to ¼” optional) to 5”
Width of material
.6” to 7” (8” optional)
Min lenght of material
8” (butt fed)
Axial Adjust (side heads)
.8” (20 mm)
Axial Adjust
(top/btm heads)
.8” (20
m...
