ID: 1249
Open
Description

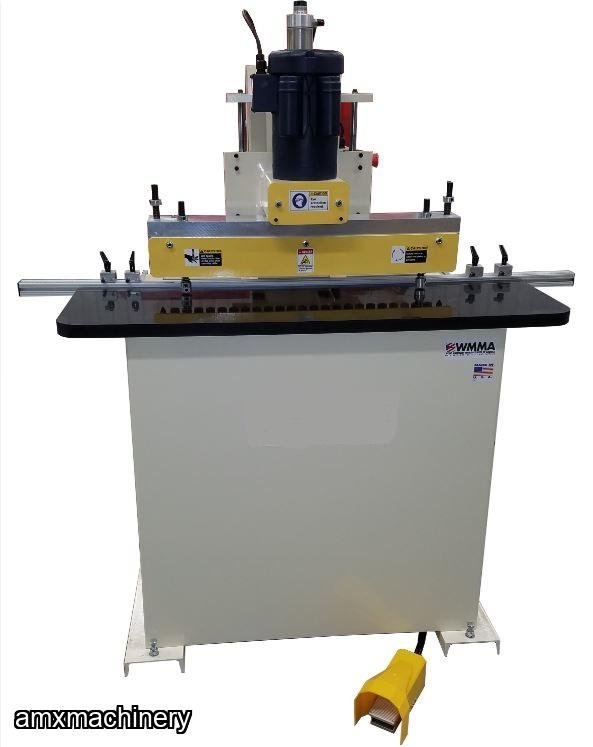

PARTE # RT-R19F3 – TALADRO MULTIPLE - 23 TALADROS – VERTICAL – CON PEDAL
Nueva con garantía
23-Spindle
Drill Head
Gear Driven Spindles on 32mm Centers
Index Pins
3 HP Spindle Drive Motor, TEFC
10mm Bored Collets
(12) Right Hand, (11) Left Hand
12″ Throat Depth
60″ Back Fence With (4) Stops
24″ X 48″ Work Table Surface
(2) Spring Operated Hold Downs
Wired 3-Phase 240/480 Volt, 60 Hz.
Pneumatic Driven Boring Cycle
Tooling Not Included
Crated Dimensions: 45″ X 80″ X 78″ H and 740 Lbs
Options
R19F1 – Single Phase Machine
An upgrade to the R113, this unit is foot pedal operated. No more using templates that wear out quickly and lose accuracy. This machine is easily adjustable for entry and exit points, and cleanly allows the user to repeat the drill hole pattern with centering pins on both the left and right hand side of the machine. The rear fence is adjustable for offset from the edge as well. If you’re looking for your first line bore drill, look no further. This machine will give you many years of service with little to no maintenance. This is a clear choice among professionals.
