Descripción
PARTE: 2CK-TA12
Is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 5HP motor it can make the cuts you need effortlessly.
- Heavy-duty cast iron table is precision ground for accuracy & precision
- Industrial strength cast iron saw carriage and trunnion for vibration free cutting
- 50” capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the saw blade

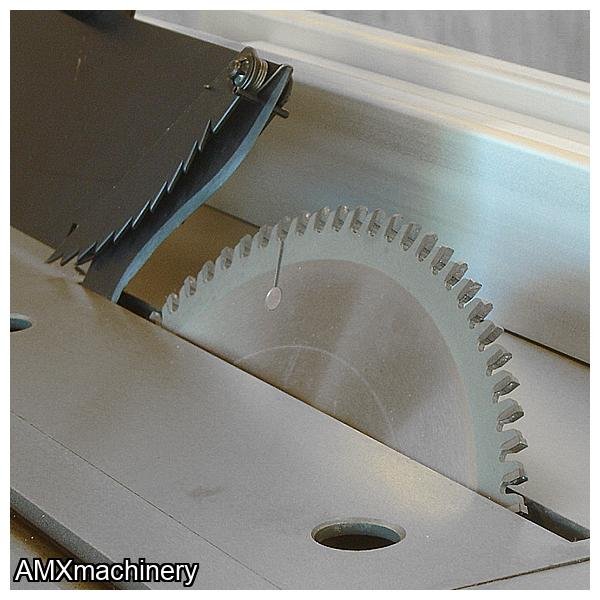

- Right tilt blade to 45o
- Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility

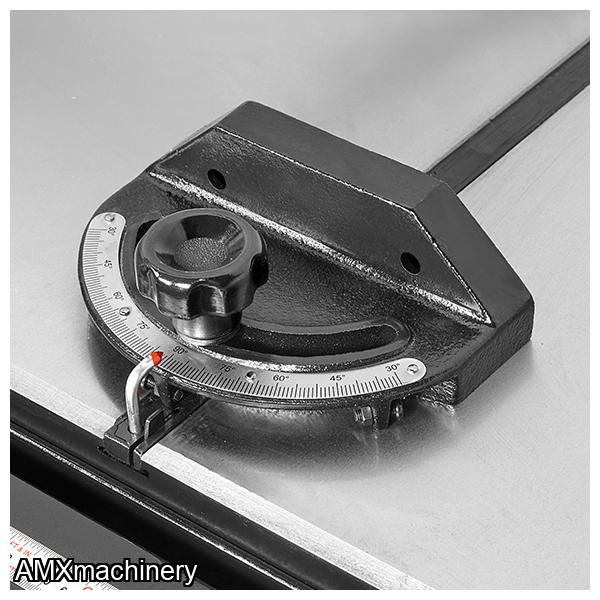

- Miter gauge with two miter slots in the table

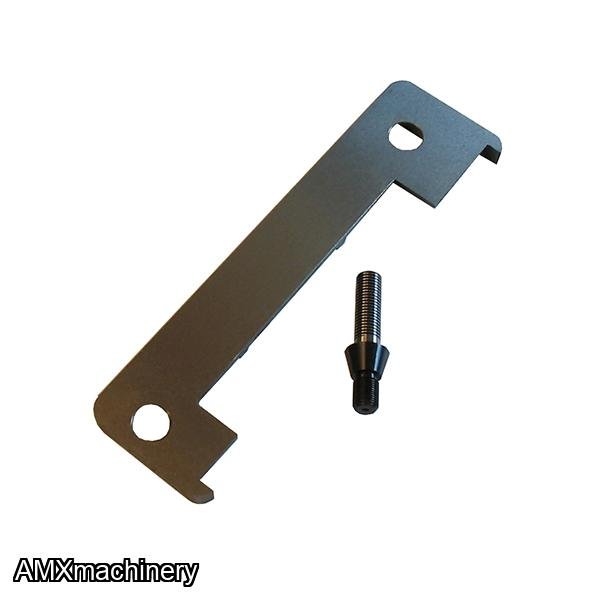

- Comes with dado arbor & dado table insert
KEY ADVANTAGES
- Rugged machine frame construction provides maximum stability and reduced vibration

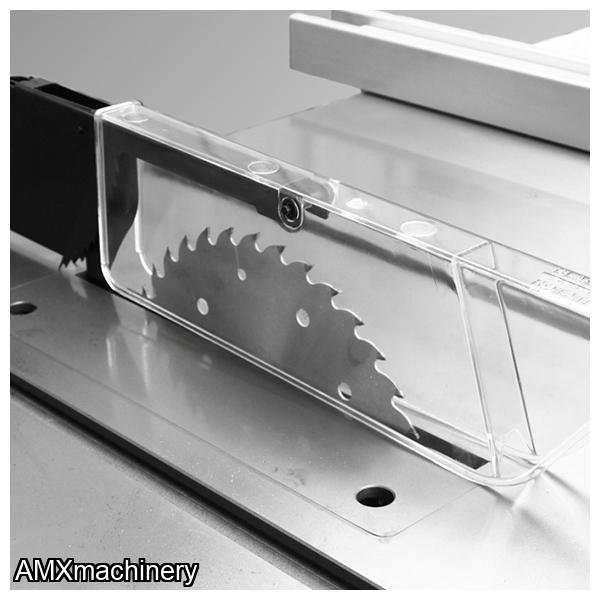

- Saw guard with built in splitter and safety anti-kickback unit
- 1” standard and 5/8” dado arbor included along with appropriate cast iron table inserts

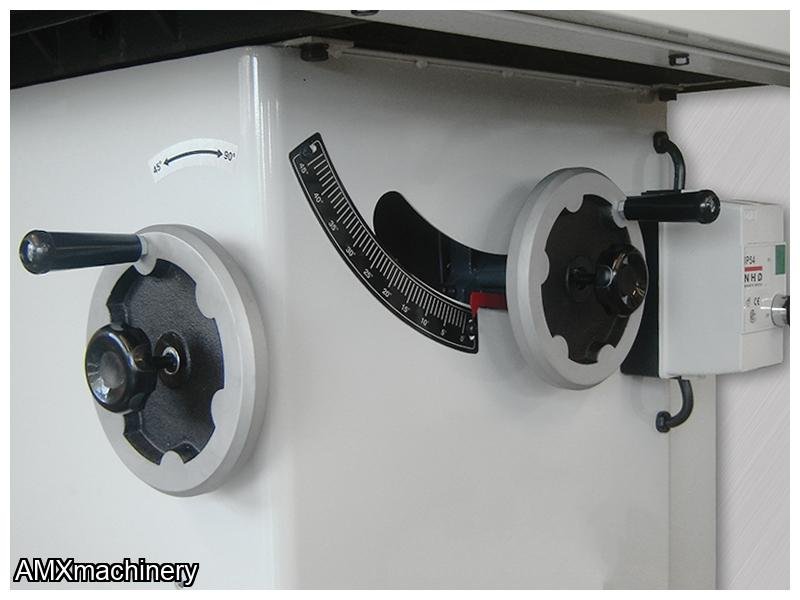

- Handwheel adjustment for blade height and tilting adjustments which can be locked in place

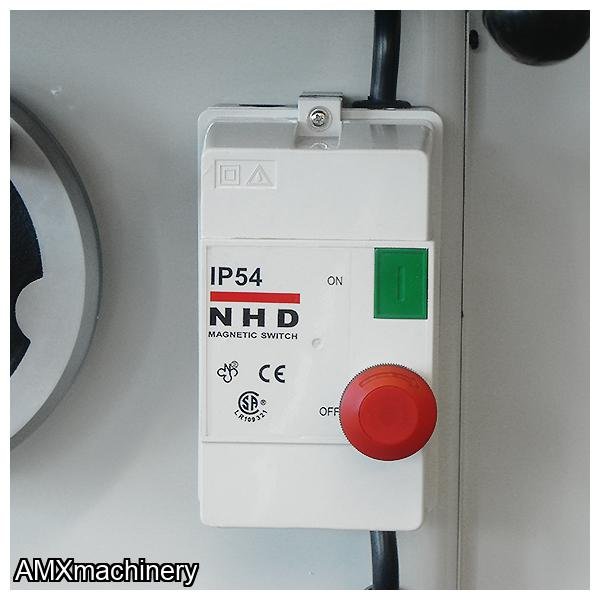

- CSA / UL approved magnetic switch
|
Saw Blade Diameter |
12″ |
|
Max. depth of cut at 90° |
4″ |
|
Max. depth of cut at 45° |
2 ¾” |
|
Arbor diameter |
1″ |
|
Dado arbor diameter |
5/8” |
|
Arbor speed |
4000 RPM |
|
Table size |
48″x30″ |
|
Table height |
34 ¼” |
|
Max. rip to right of blade |
50″ |
|
Motor |
5HP |
|
Electrical |
230/3/60 = 15.2 Full Load Amps |
|
230/1/60 = 28 Full Load Amps |
|
|
Net weight |
572 lbs |
|
Gross weight |
704 lbs |
