ID: 417
Open
Description
PARTE # 2TA-TS-HACDE – RECIPROCANTE – 43” ANCHO
Nueva con garantia

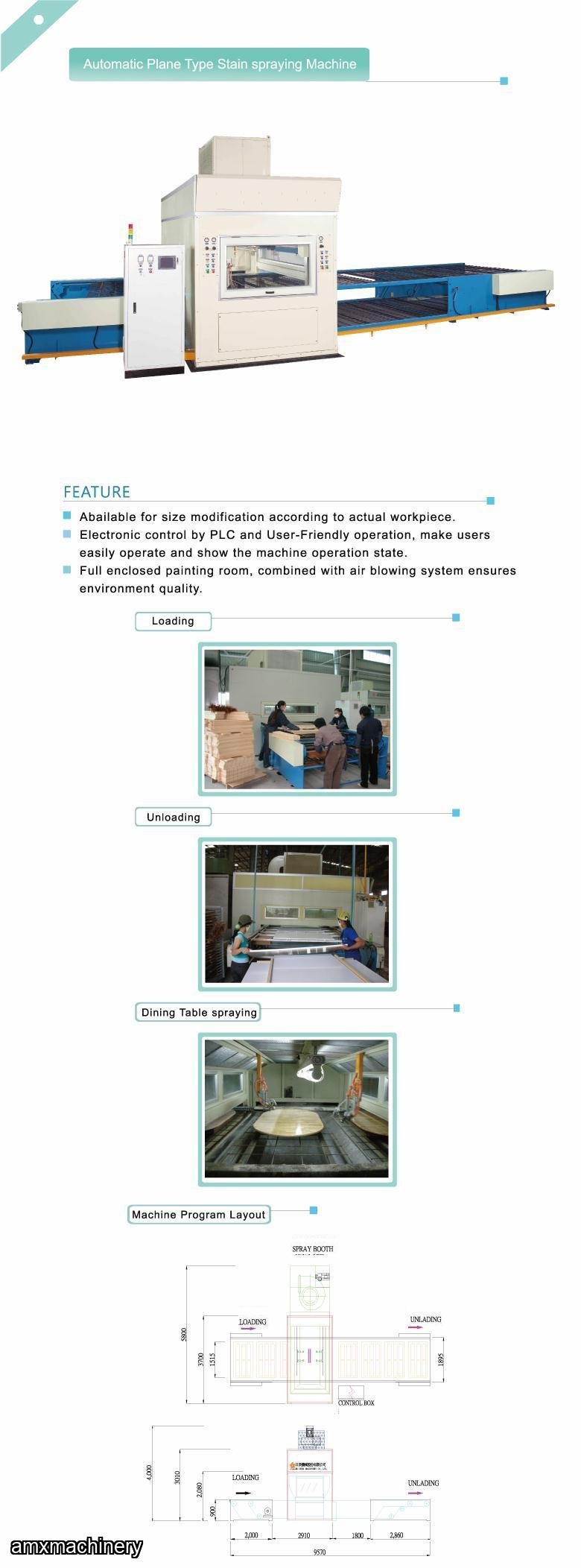

Auto Clean Flat-Line Spray Machine
Technical data: (Each Set)
A. Machine Size L6442 x W3700 x H2700mm
B. Conveyer 1 lot
- Loading Conveyer Belt & roller type
- Spray Conveyer Belt type
- Belt Cleaning Unit (for over spray cleaning)
- Conveyer Speed 1~4M/min
- Speed Control Inverter
C. Reciprocator 1 lot
- Power 2KW
- Speed 1~1.8M/sec.
- Speed Control Servo Motor
- Valuable Stroke 1100mm
D. Spray Booth 1 lot
- Size L2250 x W3700 x H2700mm
- Partition Plank (coating on side of plate, the PU foam inside)
- Lighting 40W x 2 (flame-proof lamp)
- Natural air
E. Drying Booth 1 lot
- Material Galvanized sheet
F. Control System 1 lot
- Control Box
- PLC Control
- Touch screen
Option:
Jet Air Clean Set
Feeding Air for Booth
-blower 1 lot
- extended surface bag filter 1 lot
- W-pre disposable pleated air filter 1 lot
- ceiling filter 1 lot
Scantec
- To figure out the shape of workpieces and deliver the information to the PLC system
for sprays controlling.
Air Spray Gun & Pump
-Air Spray Gun 4pcs (IWATA WA100)
-1:1 Diaphragm Pump 1 set
Air-mix Gun & Pump
-Air-mix Gun 4pcs
-Mid-pressure pump 1 set (WIWA)
