Description

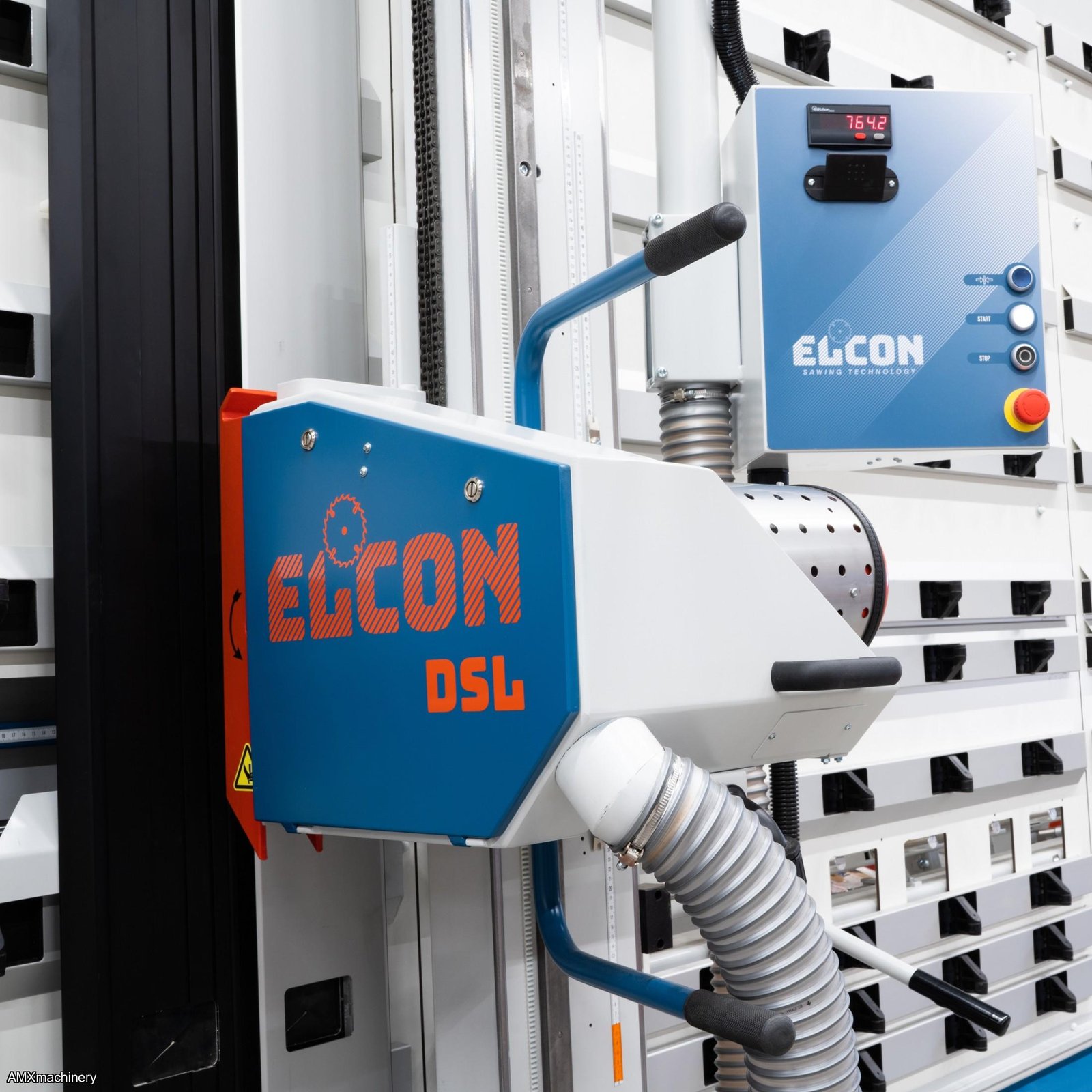

PARTE: 4EL-DS - SIERRAS ESCUADRADORAS VERTICALES - ELCON - SERIE DS
SERIE DS-155
SERIE DS-185
SERIE DS-215
SERIE DSL-155
SERIE DSL-185
SERIE DSL-215
SERIE DS1/2L
SERIE DS1/2L
SERIE DS1/2L
|
Model & Dimensions (mm) |
155 |
185 |
215 |
|
Maximum cutting length |
3300 |
3300 |
4300 |
|
Maximum cutting height - Horizontal |
1505 |
1805 |
2105 |
|
Maximum cutting height - Vertical |
1550 |
1850 |
2150 |
Description:
The DS models are provided with all basic functions for professional use, making it also suitable for plastics and aluminium. A choice of accessories is optional like scoring or a v-grooving attachment.
Equipped with:
-1 meter point
4,0kW motor
Options:
Variable rotation speed for 4.0kW motor
Automatic shifting back frame (pneumatic)
Pneumatic mid fence
Pneumatic lifting transportrollers

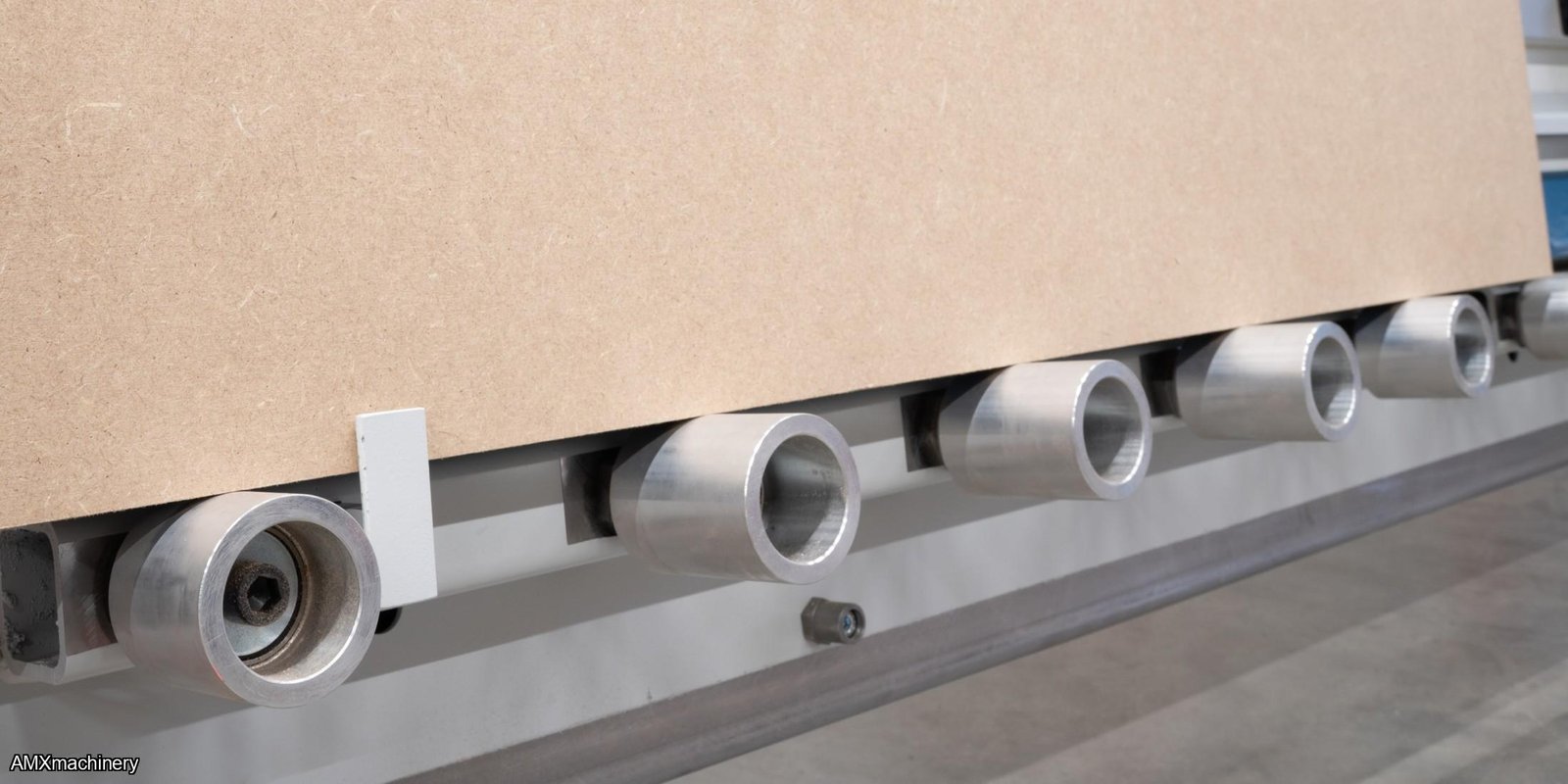

Aluminium bottom rollers incl clamp
Pneumatic panel clamp
Pneumatic panel clamp (extra)
Extension to measuring stop
Cutting length 4.300 mm (type 185)
Cutting length 5.300 mm (type 215)
Digital read out horizontal
Digital read out vertical
Programmable vertical cutting
V-grooving set 90 degrees
Lubrication for non-ferro materials
Extra dust extraction at the right hand side in side panel
