Descripción

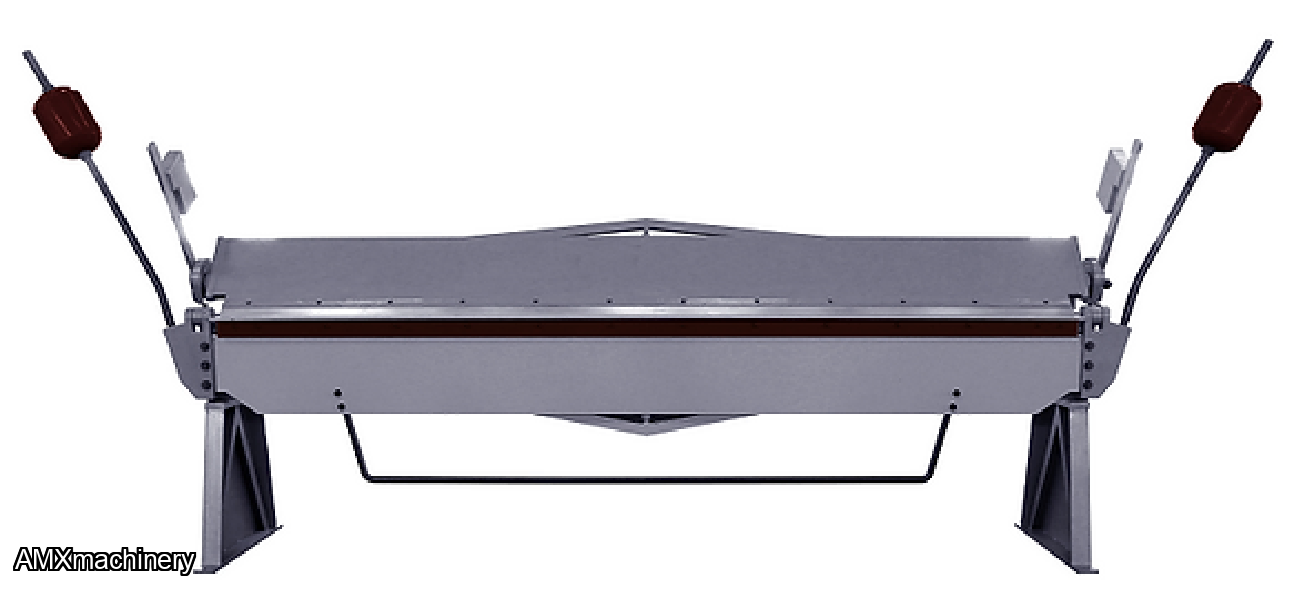

FRENO PARA DOBLADORA DE METAL PARYE: 2GM-SB-1014
- ISO 9002 certified
- Large 3” beam opening, adjustable
- 1” beam adjustment (front and back)
- Stop rods for repeat bends
- (2) counter weights
- All steel heavy body construction with extra heavy tie rod for minimum deflection
Bending Capacity: Mild Steel | 14 Ga. |
| Bending Capacity: Stainless Steel | 18 Ga. |
| Bending Length Capacity | 10' |
| Bending Angle Degree | 0-135° |
| Beam adjustment, front and back | 1" |
| Minimum reverse bend | 5/16" |
| Manual clamping | Standard |
| Beam opening | 3" |
Net weight Shipping weight | 3,250 lbs. 3,350 lbs. |
Machine Dimensions: Shipping Dimensions: | 159" x 32" x 77" 142" x 30" x 41" |
