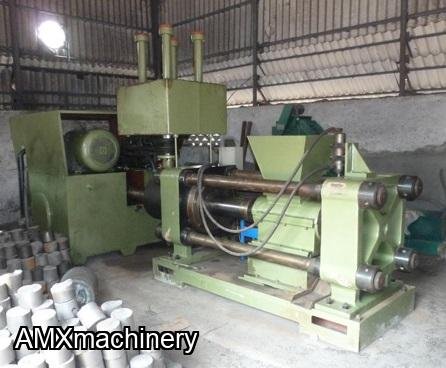

PART: 3CH-83A-160-E - BRIQUETTER - METAL CHIPS - HYDRAULIC
NEW - WITH WARRANTY

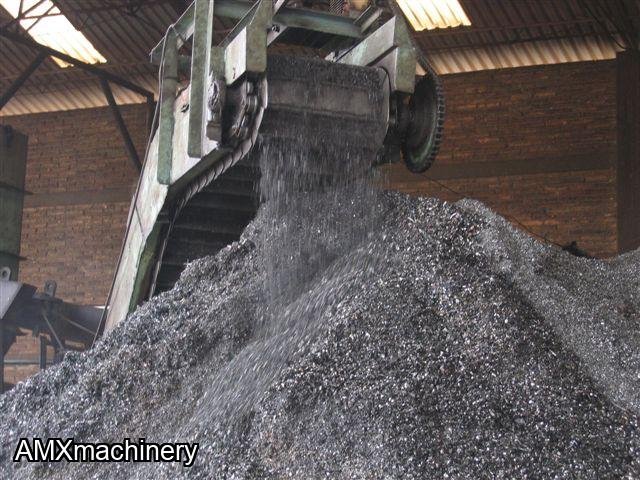

Metal scrap briquetting press machine can compact the different kinds of chips like cast iron,aluminum,copper,magnesium,titanium,molybdenum etc metal crap chips into high density blocks without any additive,greatly reduce the casting cost.
Specifications:
|
Model |
unit |
3CH-83A-160 |
3CH-Y83-160 |
3CH-Y83-230 |
3CH-Y83-300 |
3CH-Y83A-300 |
3CH-Y83-800 |
3CH-Y83-1000 |
|
|
Nominal Force |
KN |
1600 |
1600 |
2300 |
3000 |
3000 |
8000 |
10000 |
|
|
Briquetting Size |
Mm |
Φ90× （60-85） |
Φ90× （60-110） |
Φ110× （70-120） |
Φ120× （70-120） |
Φ120× （70-120） |
Φ180× （165-18） |
Φ220× （200-25） |
|
|
Briquetting Density |
Kg/m3 |
≥5200-5400 |
≥5200-5400 |
≥5200-5400 |
≥5200-5400 |
≥5200-5400 |
≥5200-5400 |
≥5200-5400 |
|
|
Working Pressure |
Mpa |
23 |
16 |
23 |
21 |
26.5 |
25 |
25 |
|
|
Production Rate |
t/h |
0.6-0.9 |
0.6-0.9 |
1.0-1.5 |
1.2-1.8 |
1.2-1.8 |
6-7.5 |
8.5-12 |
|
|
Total Power |
Kw |
24.2 |
24.2 |
39.2 |
47.2 |
49 |
185 |
225 |
|
|
Machine Weight |
Kg |
4500 |
6000 |
7500 |
8800 |
7500 |
50000 |
60000 |
|
|
Machine Total Size |
Mm |
4900×1470 ×1522 |
4100×1086 ×2006 |
4100×1086 ×2006 |
5000×1600 ×2600 |
4000×1400 ×3700 |
8000×6500 ×2500 |
9000×7500 ×2500 |
|
Metal scrap briquetting press machine can compact the different kinds of chips like cast iron,aluminum,copper,magnesium,titanium,molybdenum etc metal crap chips into high density blocks without any additive,greatly reduce the casting cost.
Fully hydraulic control equipment, the electric equipment main control part adopts PLC control, the whole working process can realize the automatic operation, reduce the labor intensity and labor.
The system is provided with a manual work procedures, easy to realize the move forward and backward, the mold open and close action adjustment.
The device is provided with one time and two times feeding program,easy to press different size of metal chips
According to customer requirements can increase the automatic feeding, discharging device
Hydraulic system adopts two-ways cartridge valve, with the good sealing performance, good open and close characteristics, pollution resistant etc advantages.
Special unloading loop and the liquid electrical switch protection circuit is arranged in the hydraulic system, to make the machine run smoothly, but also improve the service life of hydraulic components.
The electric control adopts the manual, automatic and two times feeding technology, can conveniently adjust the operation mode and the feeding length, in order to get the material pressing block suppression of different materials and sizes.
The machine adopts the micro movement hopper on pressing device, solved the not easy to feed and discharge problem, also reduce the abrasion of the guard of discharging.
The hydraulic cylinder adopts the main pressure cylinder and fast forward cylinder connected to form the composite cylinder, improve the operating speed, reducing the energy consumption of the motor, but also improve the production efficiency.
The machine adopts PLC control

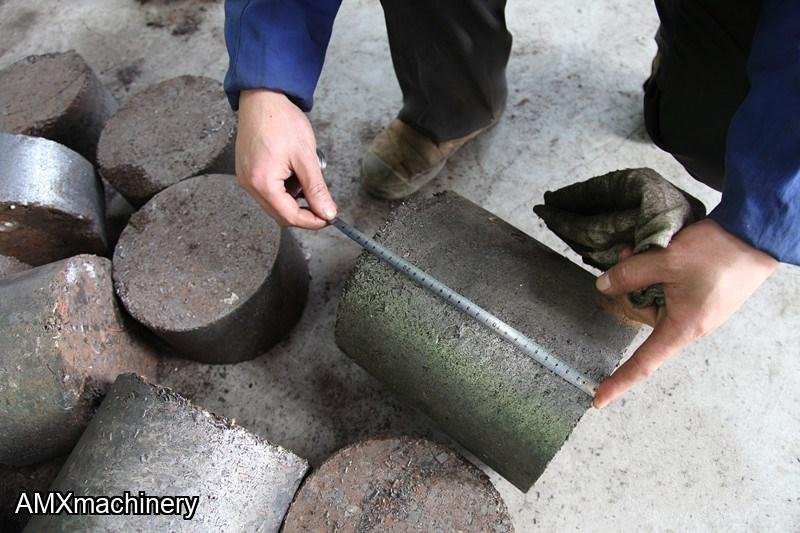

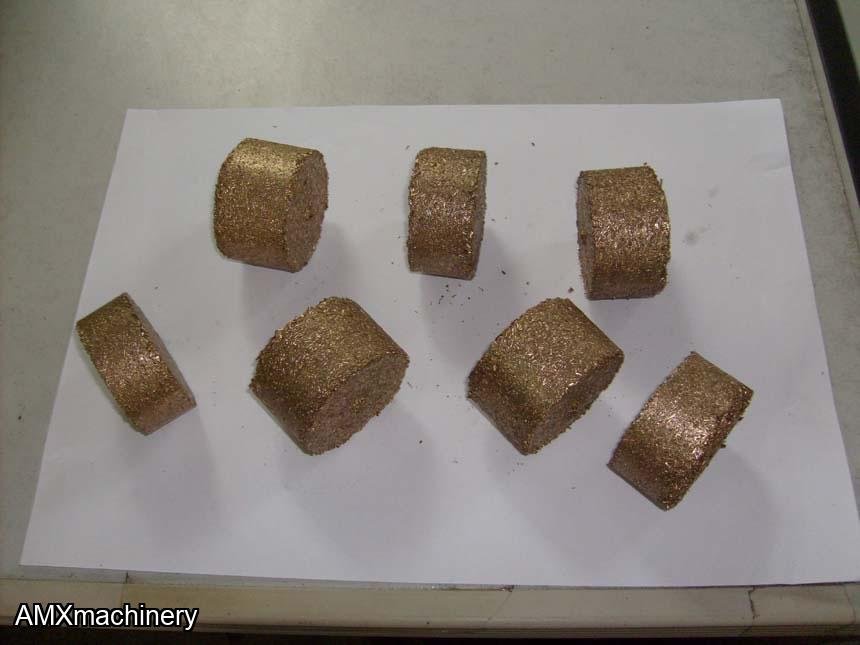

The machine pressed metal block has large diameter, high density, resist broken, good surface finish, not easy oxidation etc. advantages.
This machine adopts a fully enclosed structure form, can recycling cutting fluid in the metal chips and prevent oil leaking pollution.
Compact different kinds of chips like cast iron, aluminum, copper, magnesium, titanium, molybdenum etc. metal crap chips into high density blocks without any additive, greatly reduce the casting cost.
