Identificador: 2628
Abierta
Descripción

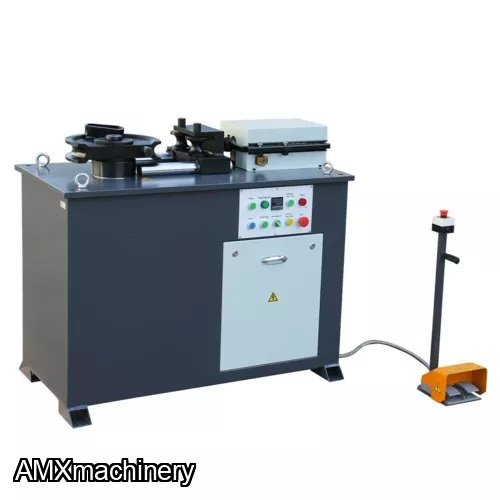

PARTE: 2KA-JTB-50 - DOBLADORA DE TUBO HIDRAULICA – CAPACIDAD 2”
Nueva con garantía
Features
Standard dies: 1〞,1-1/4〞,1-1/2〞,1-7/8〞
Wall thickness: 0.04〞-0.19〞
Hydraulic power drive, PLC Control
Bending workpieces such as low carbon round tubes, stainless round tubes, square tubes, and round steel bars to achieve desired shapes.
The equipment features "one-touch" operation on a single workpiece and data-program controlled mass processing.
Easy to operate, reasonable in composition, and low power consumption with high work efficiency.
Technical Specifications
Dimensions of Workpieces：
Round pipe： Max. 2” Min. ：5/8”
Stainless steel pipe： Max.1-1/2” Min. ：5/8”
Square pipe： Max. 2x2" Min. ：5/8”x 5/8”
Angle of Bending：180°
Rate of Main Shaft Rotation r/min : 5
Performance of Motor : 2.2 kW 1400 r/min
Hydraulic Motor for Specific Purpose ：1.1kW 1400 r/min
Packing Size ：57x27x46 in
N.W./G.W. : 1212 kgs / 1366 lbs
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
SIERRA ESCUADRADORA 3200 MM
PARTE # SIL-DC-SE3200 - SIERRA ESCUADRADORA - 3200 MMNUEVA CON GARANTIAPeso760 KgAltura De La Mesa36" (914mm)Tipo De Empaque2 cajasCapacidad De Corte A 90º4"Capacidad De Corte 45º2-3/4”Diámetro Del Disco12”Rango De Inclinación Del Disco0° – 45°Motor Principal7 1/2 HP 220V, 60 Hz, 3 FasesMotor Del Disco Incisor1 HP 220V 60Hz 3 FasesDiámetro Del Disco Incisor4-3/4" (120mm)Diámetro Del Eje Incisor20 mmDiámetro Del Eje Principal1-3/16" (30mm)Velocidad Del Disco Principal2 (4000–600...
AMXmachinery
CNC DRILL GLUE INSERT DOWEL MACHINE HOMAG WEEKE ABD 100
PART: 12063E – CNC DRILLING AND DOWEL INSERTING MACHINE – HOMAG WEEKE ABD 100USED – VERY GOOD CONDITIONSYEAR: 2010Weeke’s model ABD 100 is designed for small and large capacity horizontal drilling, gluing, and dowel insertion. The ABD 100 is produced by skilled technicians with a long tradition for excellence in engineering and machine building.The Model ABD 100 is built on a heavy-duty base with welded steel construction. The main horizontal beam of the machine holds the carriage ...
AMXmachinery
BRIQUETEADORA - ENTRADA 55” X 55” X 37” - REDONDO 50 MM
PARTE: 2WE-TH514 - BRIQUETEADORA - ENTRADA 55” X 55” X
37” - REDONDO 50 MM
NUEVA CON GARANTIA
Capacidad: 80-120 lbs/hr
-
Hopper Dimensions: 55.1 x 55.1" x 37" (1,400 x 1,400 x 950 mm)
-
Hopper Configuration: 4 Sides straight
-
Hopper Volume: 2.4 yds³ (1.85 m³)
-
Hydraulic Motor: 12 hp (9 kW)
-
Hydraulic Oil Volume: 42.3 gal (160 liters)
-
Briquette Diameter: 2" (50 mm)
-
Weight: App 2,645 lbs (1,200 kg)
*
Image may not depict actual equipment ...
